CJ750 M1M M1S 12V CATALOGUE PAGE 004
1/1

CJ750 M1M M1S 12V CATALOGUE PAGE 004

$20.00
$20.00
Save $0.00
12P004 Option
Please select a 12p004 option
Quantity
SKU: 12P004-N11-A24

NOTE:

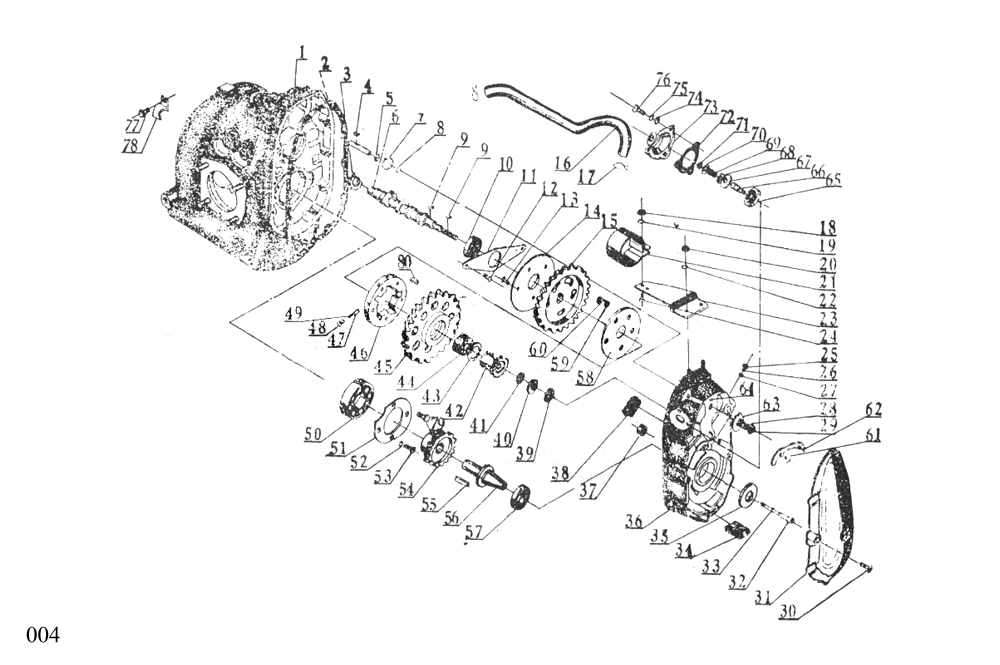

SUPER CLUTCH = #14,15,58-60,45-49. these gears assembly.


VERY IMPORTANT:

In the options:
A=52 FACTORY MANUFACTURED.
B=331 FACTORY MANUFACTURED.

In the engine. Usually have 2 factories make it. One is 52 factory. Another one is 331 factory.

BUT: How could I know my engine's factory?
Answer: You need open your engine. See #54,55,56.
If they COMBINED together, that's the 52 factory engine.
If they can DISASSEMBLE, that's the 331 factory engine.

Before buy, please make sure above. Some engine parts cannot exchange!
Make sure you choose the correct parts!

P.S.: 52 factory parts are difficult to find out. So, actually, change all these 52 factory parts to 331, can make your engine still work!
Include: #06 camshaft, #11,15,45,56,54-56.
See here.

#06 = camshaft. Have 52,331 different. Also, M1M different with M1S.
#11 = Have 52,331 different. Also, M1M different with M1S.
#14,15,42-49,58-60 = super clutch assembly. Have 52,331 different. Also, M1M different with M1S.
#54-56 = generator bolt. Have 52,331 different. Also, M1M different with M1S.

If the parts you need didn't list, you can contact us at first. We will try our best to find it out.

All options quantity: for 1 bike use.
Some parts can also use on: URAL M72, DNEPR K750, BMW R71 and some similar bikes.
If the selection show 0, you can double check with me. Maybe I can find, maybe I cannot. Thanks for understand.
